FlexE / 01

Bespoke Electrical Buildings

Formerly QSK E-House / Modular E-House

Purpose-built

Bespoke Electrical Buildings for:

MV / HV switchgear
Power and distribution transformers
Control, protection and SCADA systems
Auxiliary and LV distribution equipment
Complex multi-equipment layouts

DeliversA fully engineered building shaped around the equipment package.

FlexEhouse is a bespoke, factory-built electrical building. Every unit is engineered around its equipment package — switchgear, transformers, control systems — so the building protects the assets without dictating layout. Delivered complete to site, ready for connection.

Data CentresUtilitiesHV/MV SubstationsIndustrialCritical Infrastructure

Gallery

FlexEhouse in the field

FlexeHouse acoustic enclosure with integrated ventilation cowls — factory build.

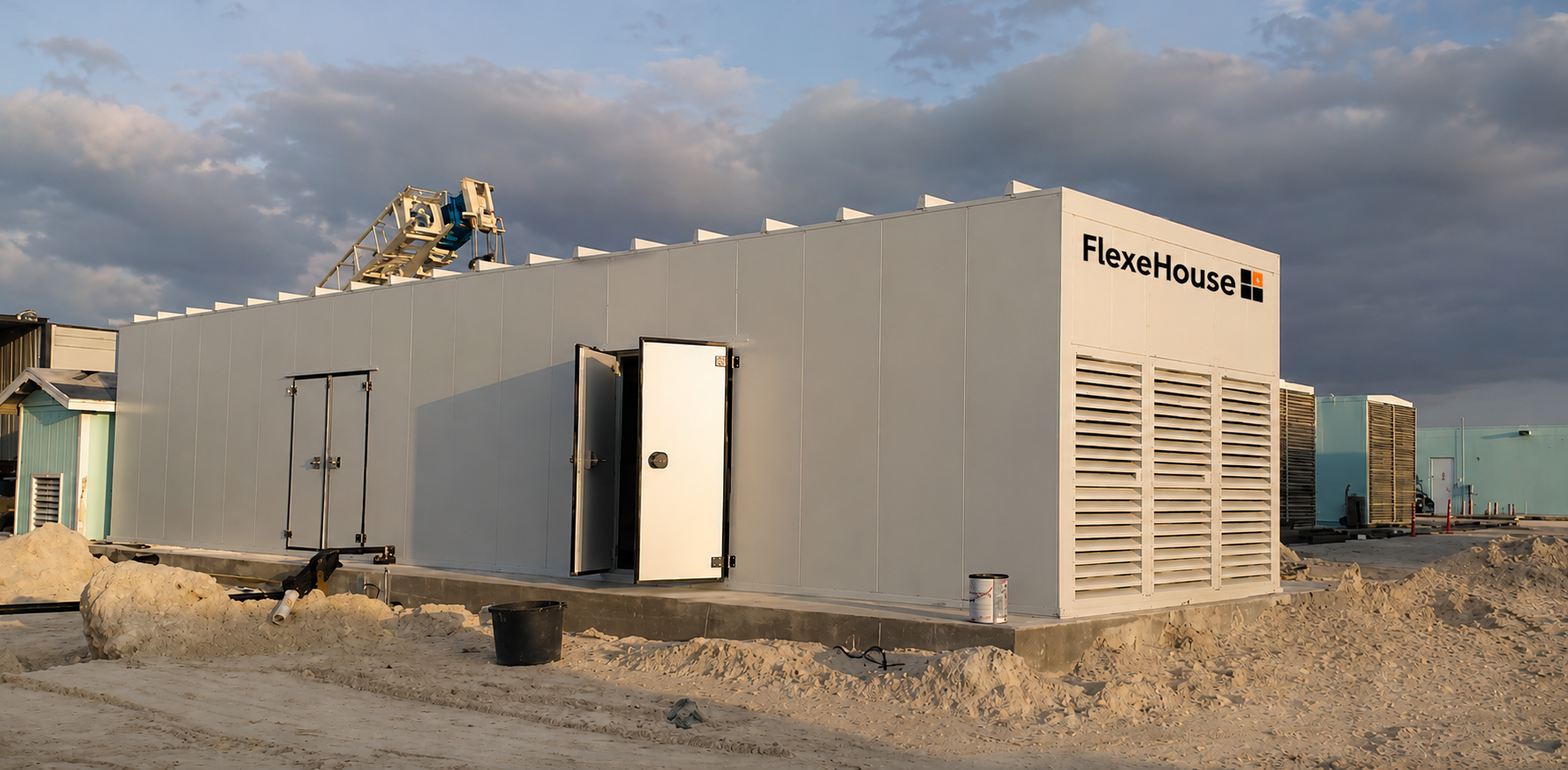

FlexeHouse on site — louvred ventilation and access doors deployed in desert conditions.

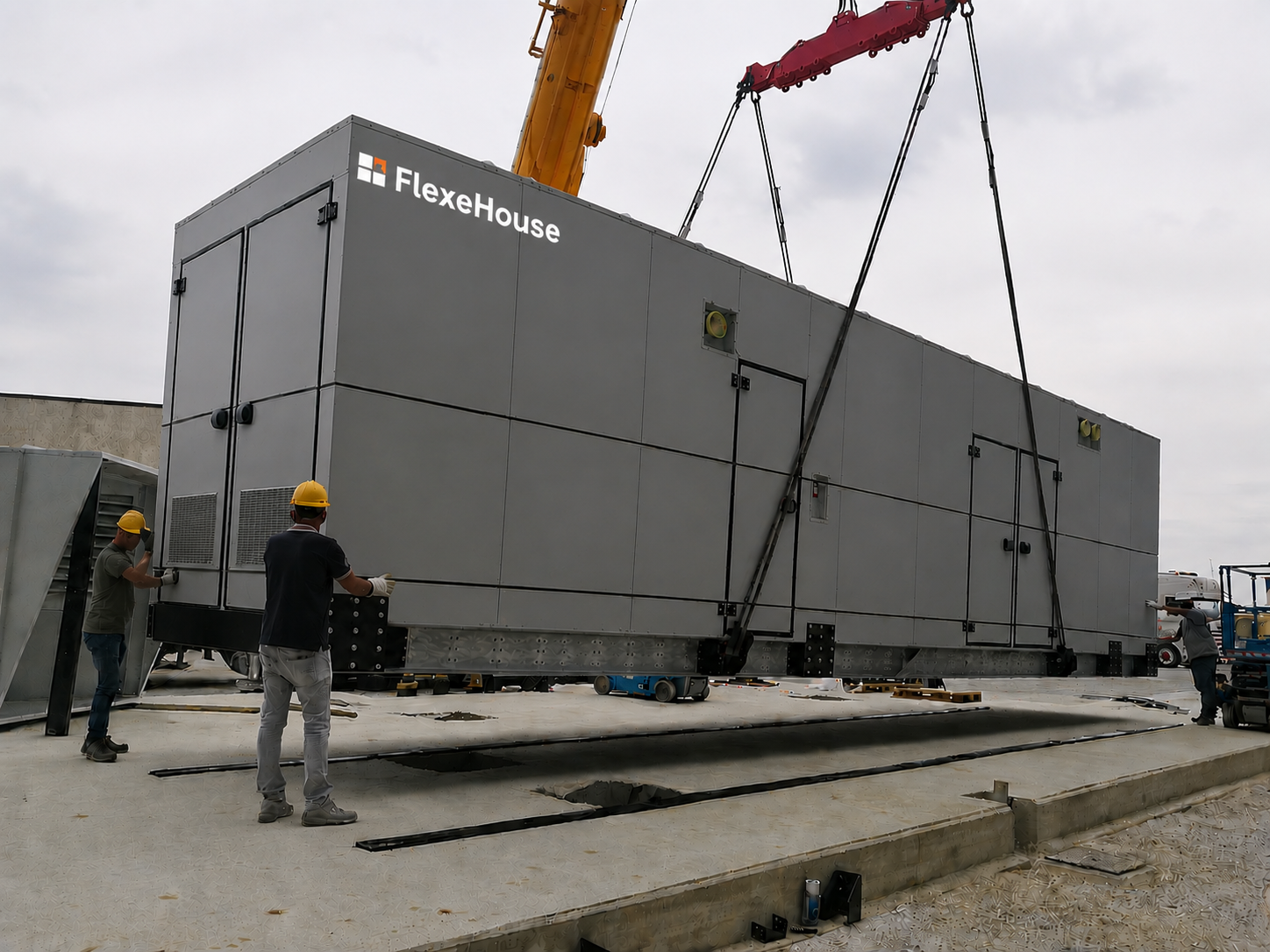

FlexeHouse craned into position — engineered for single-lift installation.

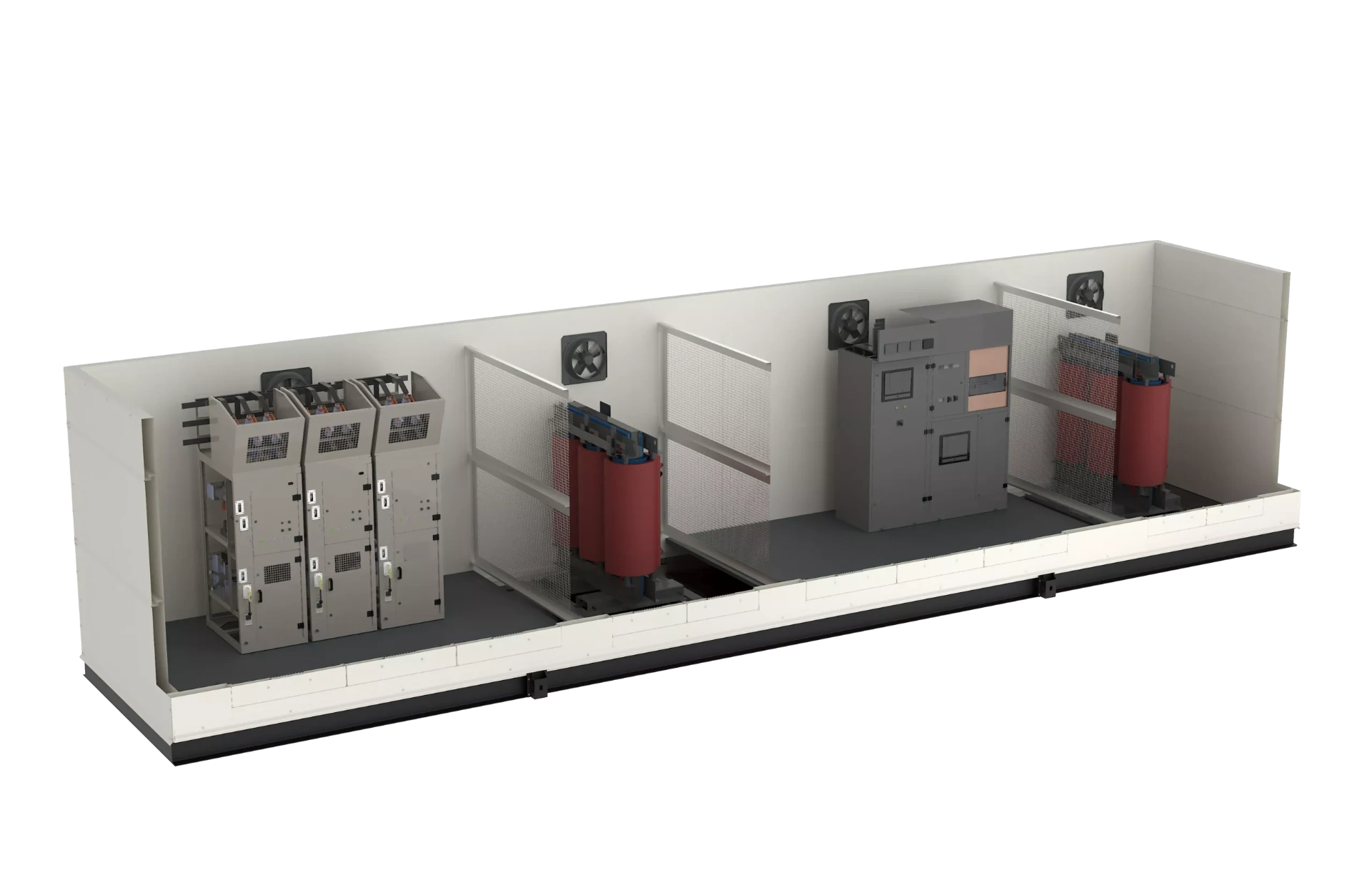

Cutaway view — MV switchgear, dry-type transformers, LV panel and forced ventilation integrated in a single walk-in enclosure.

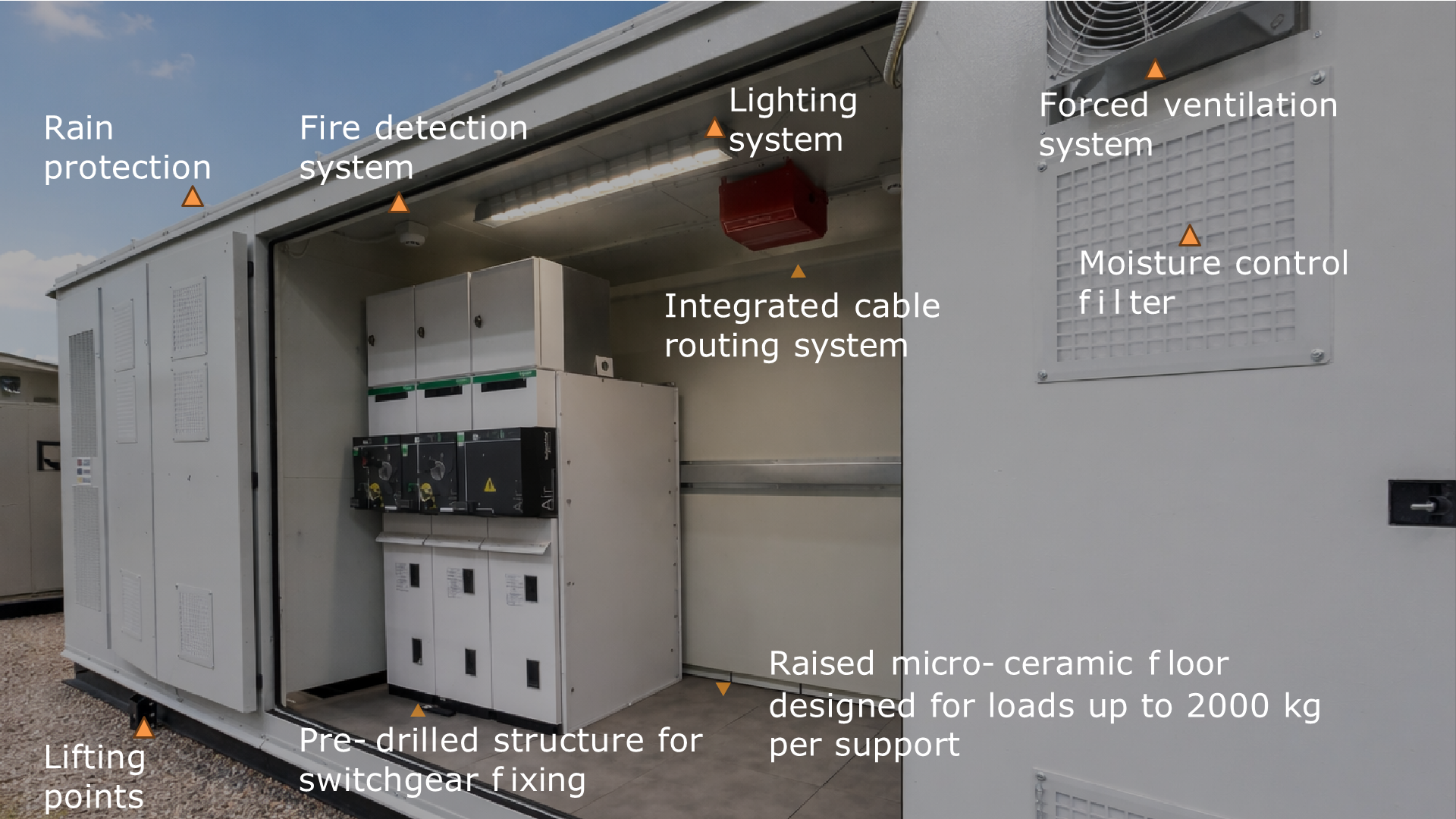

Standard features — rain protection, fire detection, lighting, forced ventilation, moisture control, raised micro-ceramic floor and pre-drilled switchgear fixings.

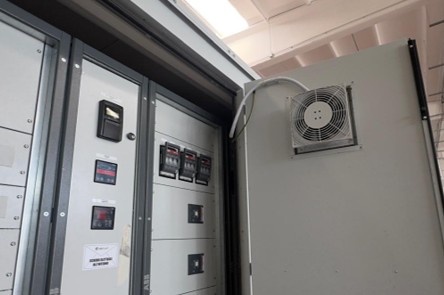

Forced ventilation and monitoring instrumentation — interior climate kept within switchgear operating limits.

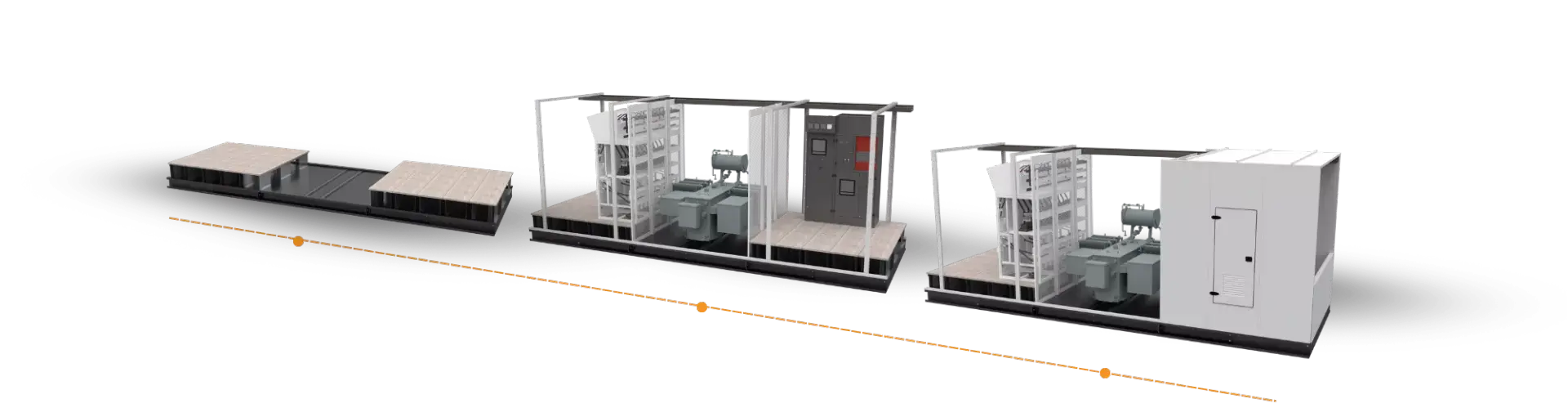

Modular assembly line — FlexeHouse skids built, equipped and tested in the factory before shipment.

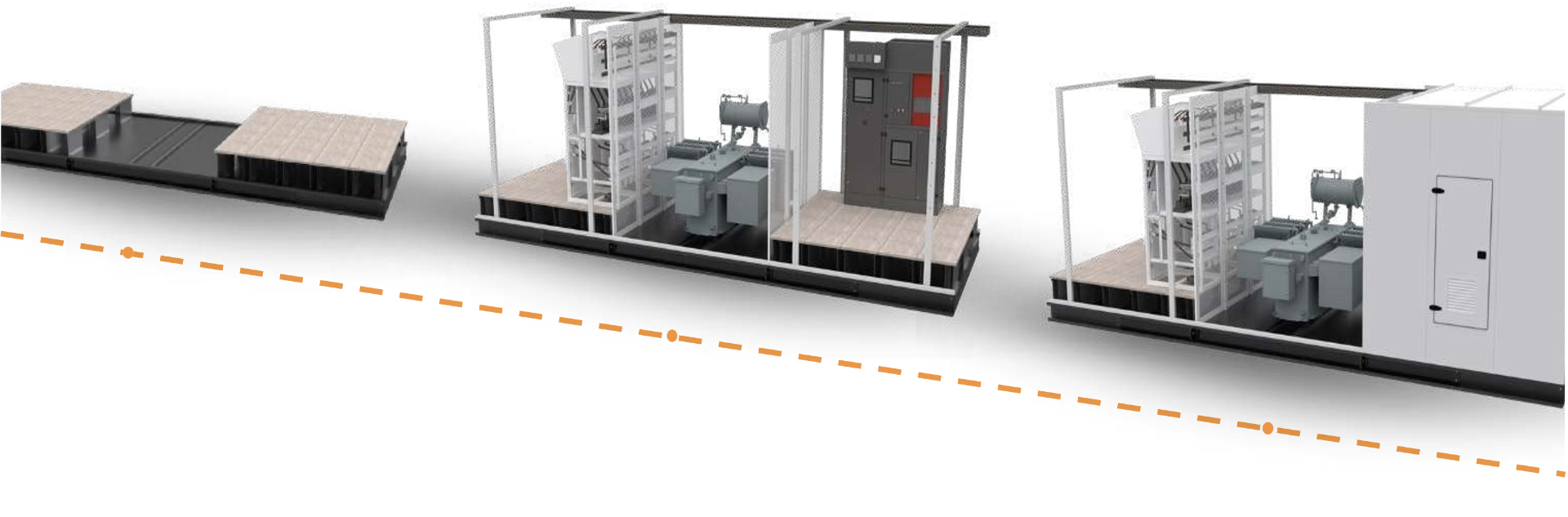

FlexeHouse assembly stages — from base platform and framework to fully enclosed walk-in switchgear housing.

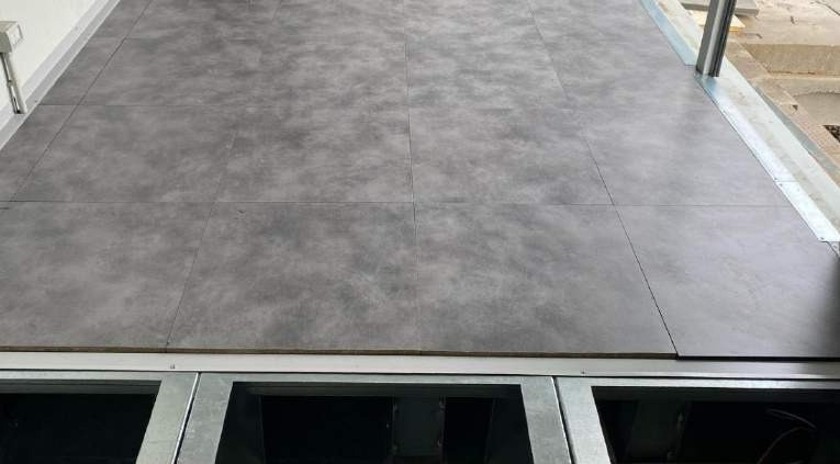

FlexeHouse raised micro-ceramic floor — serviceable panels on a galvanised steel support frame for cable access and climate control.

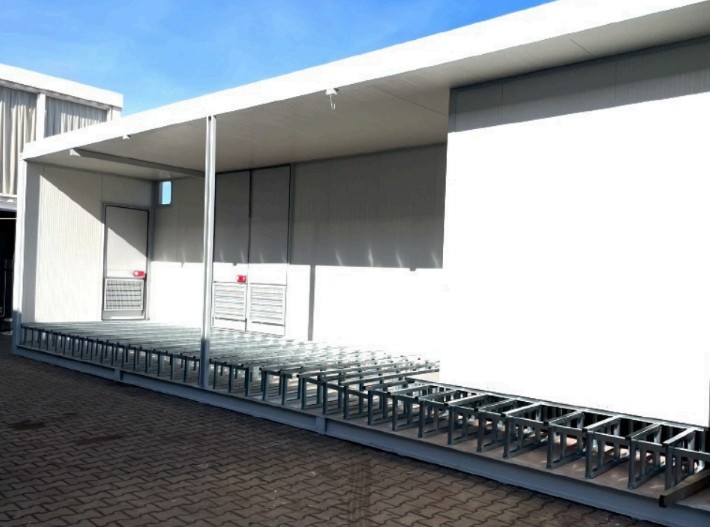

FlexeHouse on site — covered walkway with integrated cable tray supports, access doors and ventilation louvres beneath the canopy.

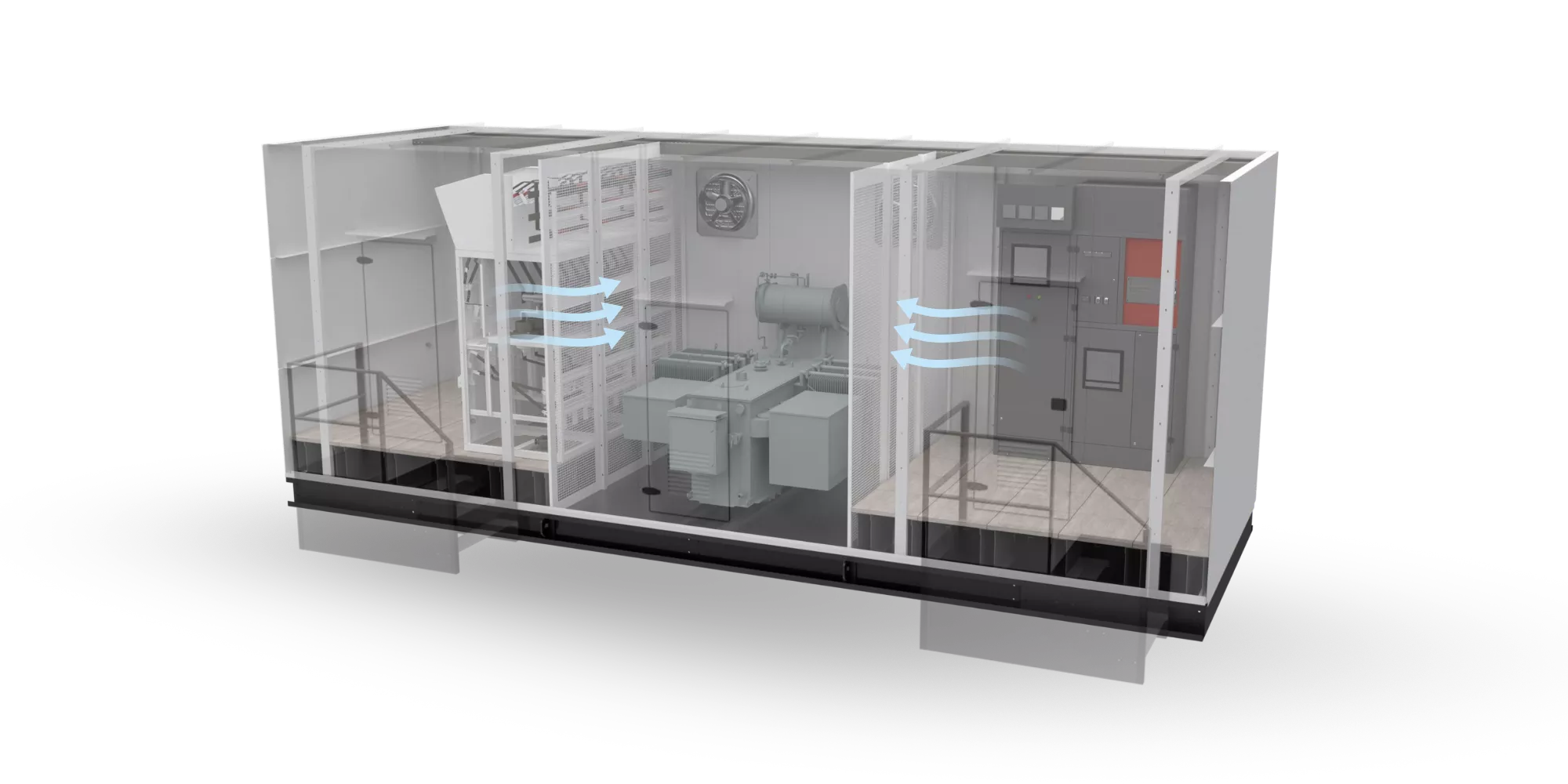

FlexeHouse airflow scheme — forced ventilation drawn across MV switchgear, transformer and LV panel to keep interior climate within equipment limits.

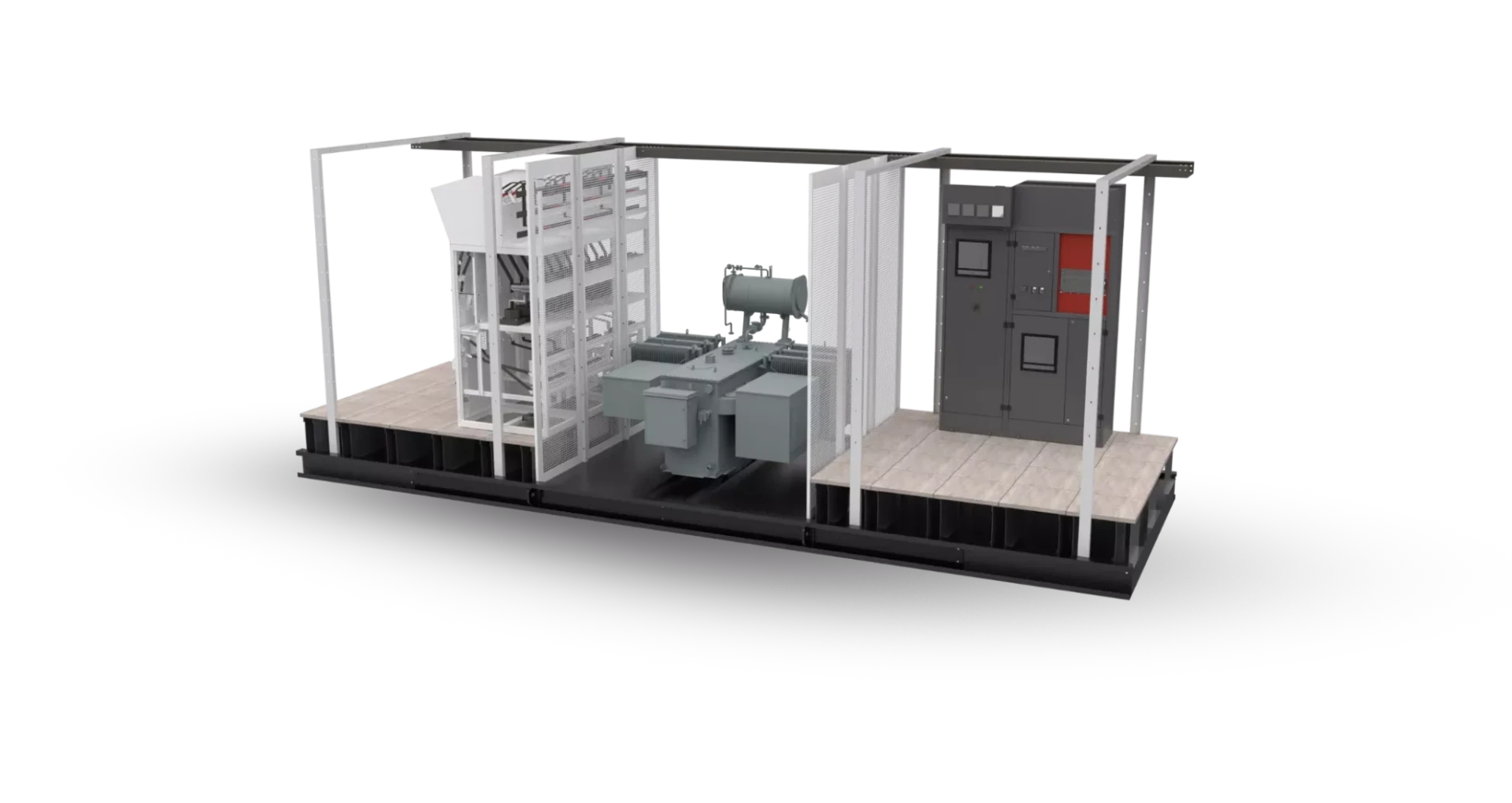

FlexeHouse skid layout — MV switchgear, dry-type transformer and LV/control panel pre-assembled on a structural steel base for single-lift install.

Specifications

Indicative engineering data

Confirmed at design freeze

Construction: Bespoke structural steel frame
Footprint: Engineered to equipment layout (no fixed envelope)
Cladding: IP54 insulated panel system
Fire rating: Cable transits to EN 1366-3, configurable wall rating
Access: Personnel doors + equipment-sized access
Lifting: Certified lifting points, single-lift design where feasible
Design life: 25+ years (external infrastructure)
Lead time: Indicative 12–20 weeks from design freeze

Technical Specifications

Detailed engineering parameters

Structural Frame

Frame type: Hot-rolled structural steel portal or rigid frame
Steel grade: S355J2 minimum; S460 optional for high-load cases
Design codes: EN 1993 (Eurocode 3), BS 5950 where specified
Deflection limit: Span/200 under equipment live load
Floor loading: Engineered to equipment point loads and distribution
Corrosion protection: ISO 12944 C3 minimum; C4/C5-M optional

Envelope & Cladding

Panel system: Insulated secret-fix sandwich panel, steel or aluminium skins
Core insulation: PIR or mineral wool, 80–150 mm thickness
U-value: 0.25–0.35 W/m²K depending on panel thickness and core
Ingress protection: IP54 as standard; IP55 optional with sealed details
Roof type: Standing seam or secret-fix with integrated drainage
Gutter capacity: Sized to local 1-in-100-year rainfall + 25% margin

Fire Safety

Cable transits: Tested to EN 1366-3; EI 60–EI 120 ratings available
Wall fire rating: EI 30–EI 120 depending on project requirements
Structural fire protection: Intumescent coating or board cladding to steel
Fire detection: Addressable smoke/heat detection, optional VESDA
Suppression: Gas or water-mist systems, designed to NFPA / EN standards

Access & Entry

Personnel doors: Steel security doors, panic hardware where required
Equipment access: Double-leaf or sliding doors sized to largest item
Door hardware: Stainless steel hinges, multi-point locking, door closers
Cable entries: Gland plates or modular transit systems, sized per schedule
Penetration sealing: Fire-rated transit frames with intumescent seals

Environmental Systems

Ventilation: Louvred natural ventilation; forced-air with filters optional
Air conditioning: Split, packaged or precision cooling, N or N+1
Anti-condensation: Trace heating or space heaters with humidistat control
Pressurisation: Positive pressure maintenance with loss-of-pressure alarm
Temperature range: Internal maintained 5–40°C standard; wider range optional

Electrical Infrastructure

Cable tray: Galvanised ladder or perforated tray, sized to cable schedule
Earthing: Main earthing bar with risers; bonded to steel frame
Lighting: LED bulkheads, emergency lighting, motion sensor control
Small power: 13A sockets, local distribution board, RCBO protection
SCADA / telemetry: Environmental monitoring with Modbus / BACnet output

Logistics & Transport

Lifting points: Certified welded lugs, proof-loaded to 2x WLL
Transport base: Skid base with forklift pockets; road-legal where required
Maximum transport size: Configured to route survey; modular split available
Site installation: Single-lift where feasible; multi-lift modular for restricted access

Compliance & Loadings

Seismic rating: UBC Zone 4 capable when specified
Wind loading: Up to 250 km/h regional wind design
Acoustic lining: Optional internal acoustic panels and custom baffling
Pressurisation: Positive-pressure option with loss-of-pressure alarm
Anti-condensation: Trace heating / space heaters with humidistat control

Scope

Standard, optional and what we never do

Standard

Included on every FlexEhouse unit.

Structural frame and weatherproof cladding (IP54 minimum)
Roof drainage and standard corrosion protection
Lifting lugs / forklift pockets and skid base for transport
Personnel access door(s) configured to the equipment list
Cable entry / gland plates per cable schedule
Internal cable tray
Fire-rated transits at penetrations
Documentation package

Optional extras

Specified per project, costed as add-ons.

Internal lighting and earthing connection point
Ventilation louvres with filters
Air conditioning (single or N+1), anti-condensation heating, pressurisation
Fire and gas detection / suppression systems
Door interlocks, access control, CCTV
Environmental monitoring and SCADA / telemetry integration
Raised access flooring
Enhanced corrosion protection (C4/C5)
Acoustic insulation and custom finishes
Mechanical fix of customer electrical equipment / hardware
Internal infrastructure package (cable tray, earthing bar, equipment support steelwork)
Electrical building services package (lighting, emergency lighting, small power, local DB)
Fire and safety packages (fire detection, VESDA, gas detection, suppression, arc flash)
Security packages (access control, CCTV, intruder alarm)
External stairways, platforms, walkways, roof-mounted equipment supports

Exclusions

Out of scope — owned by other trades.

Power cabling termination — NEVER our scope
Switchgear, transformers, control panels, or any electrical equipment housed inside
Electrical design, wiring, or termination of housed equipment
Civil works — foundations, groundworks, drainage beyond the footprint
Grid connection or regulatory approvals

WE NEVER TERMINATE POWER CABLING — THAT STAYS WITH THE ELECTRICAL CONTRACTOR / INTEGRATOR.
