FlexEgen
Power Generation Environments for:
- Diesel generators
- Gas generators
- CHP (combined heat and power) systems
- DRUPS (diesel rotary UPS) systems
- Multi-generator power plants
DeliversA complete operating environment for power generation equipment.
FlexEgen is an engine-agnostic acoustic enclosure for diesel and gas generators. The enclosure is designed around the genset — ventilation, exhaust routing, fuel and acoustic treatment all sized to the engine. Standard UK build includes a bunded floor.
Video
FlexEgen assembly
FlexEgen factory assembly — Cummins QSK engine being built and tested on the production line.
Three formats
One FlexEgen platform. Three structural base formats.
Every FlexEgen is the same acoustic enclosure family — chosen base format depends on fuel autonomy, site civils and installation method.

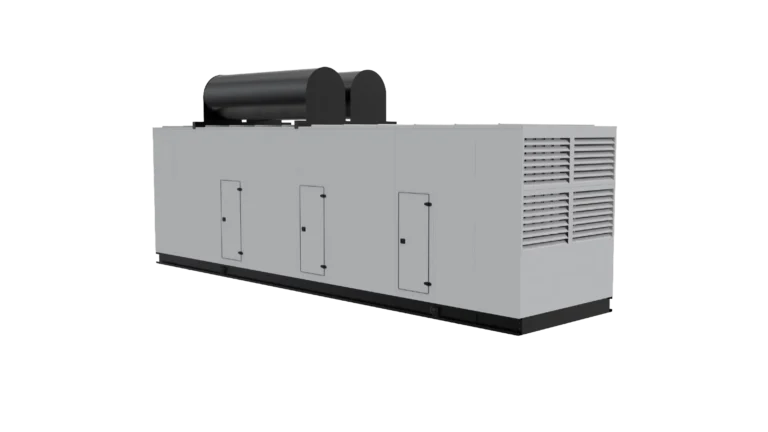

Dropover
Enclosure drops directly over a customer-supplied genset and bunded base. Minimal structural steel — maximum integration with existing equipment.

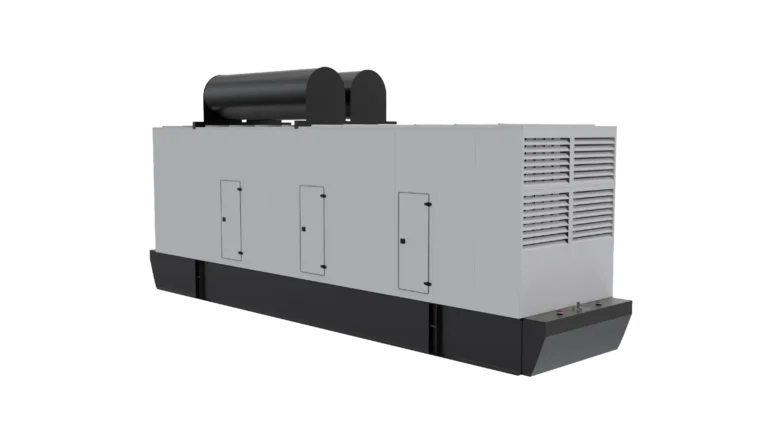

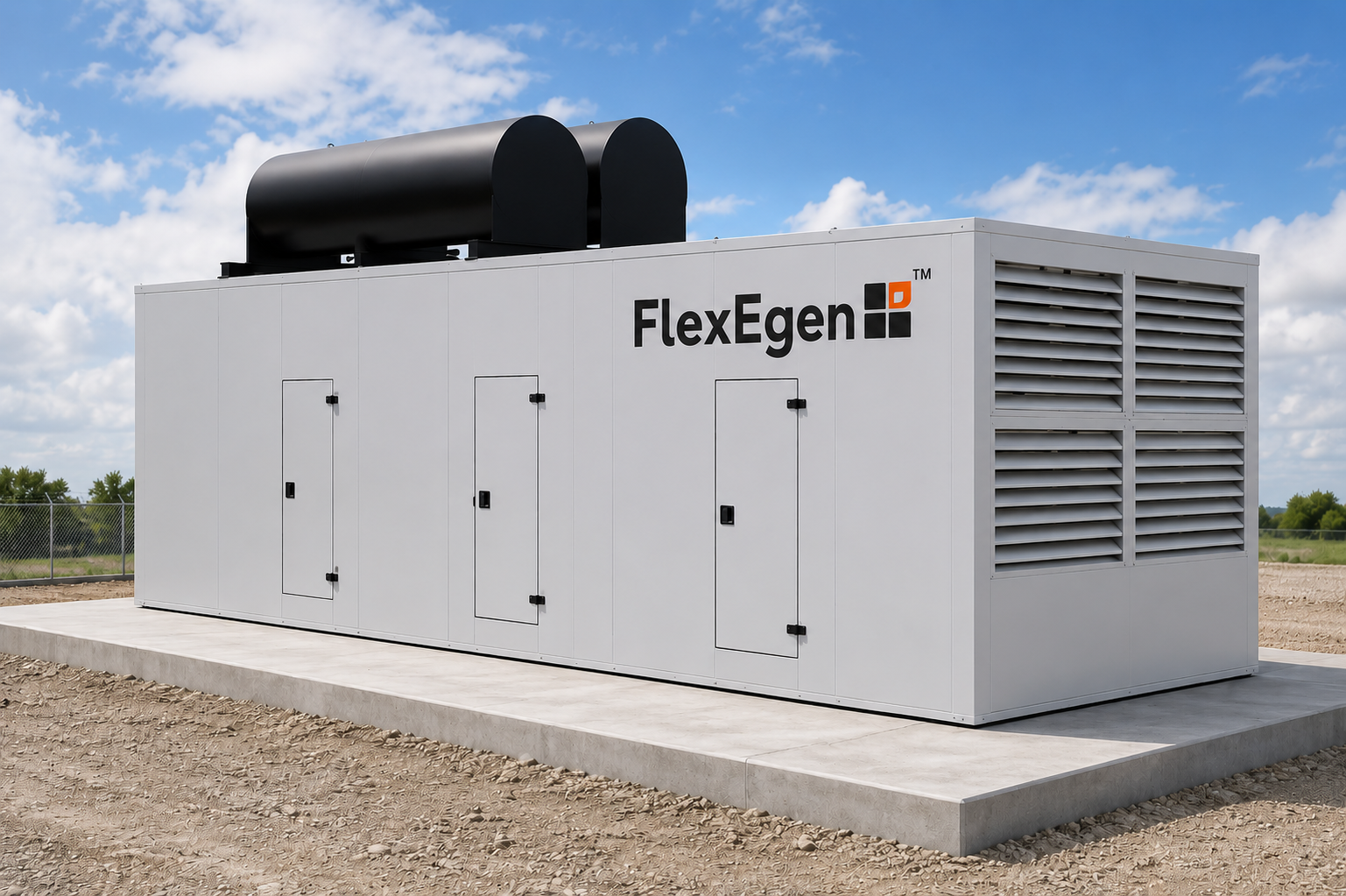

Integrated fuel tank
Structural base tank doubles as fuel storage and chassis. Bulk fuel autonomy in a single lift, with bunded containment built into the enclosure.

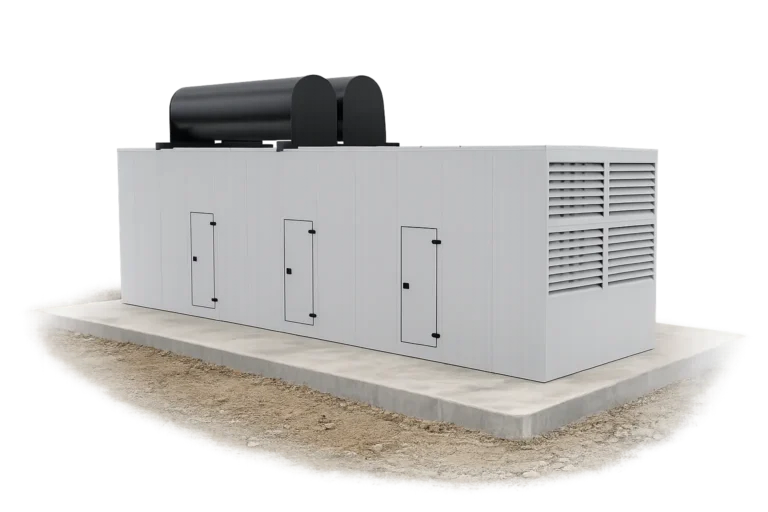

Skid base frame
Heavy-duty structural skid for craning and re-deployment. Sits on a slab or concrete plinth — engineered for transport and rapid relocation.
Gallery

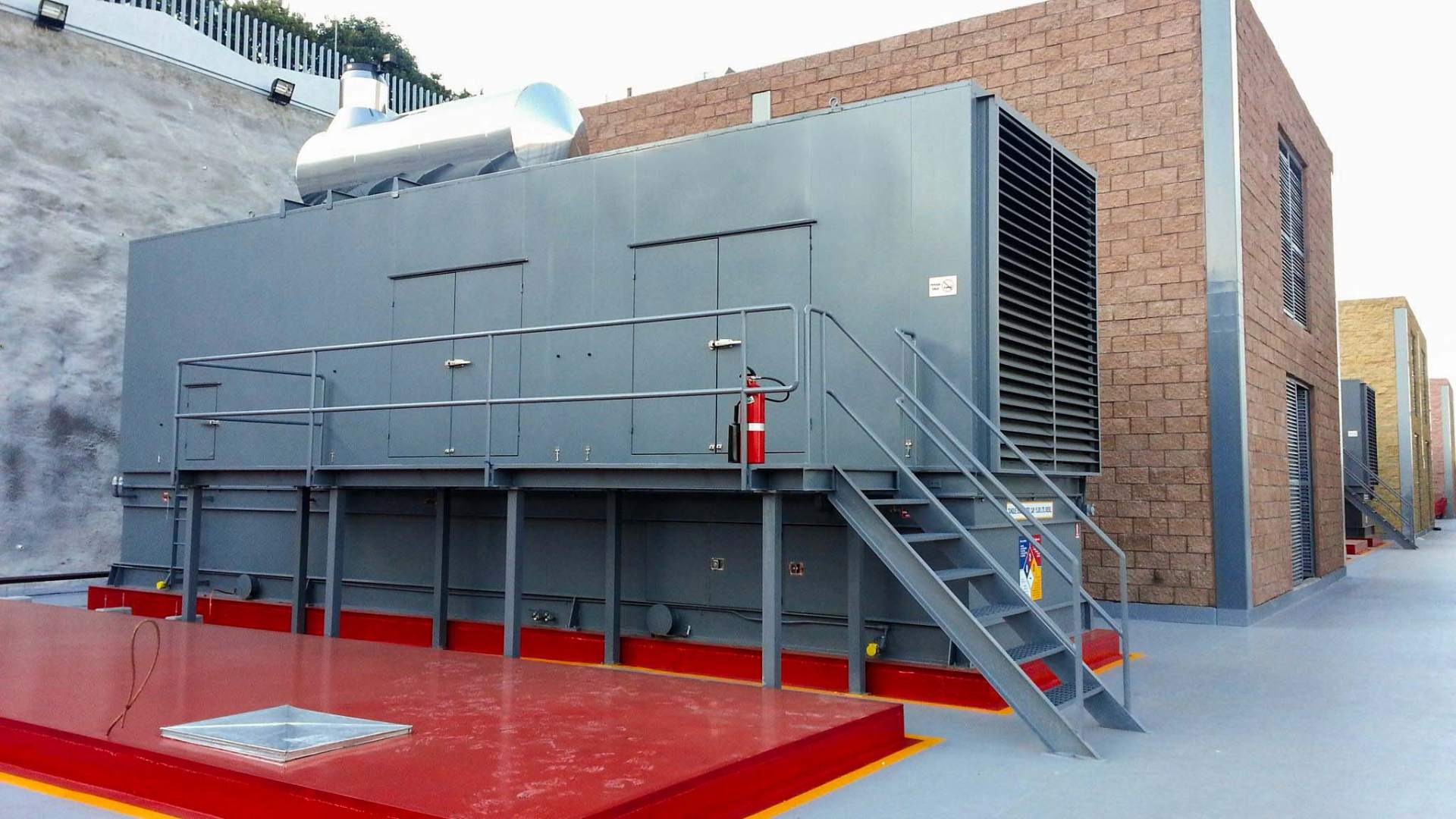

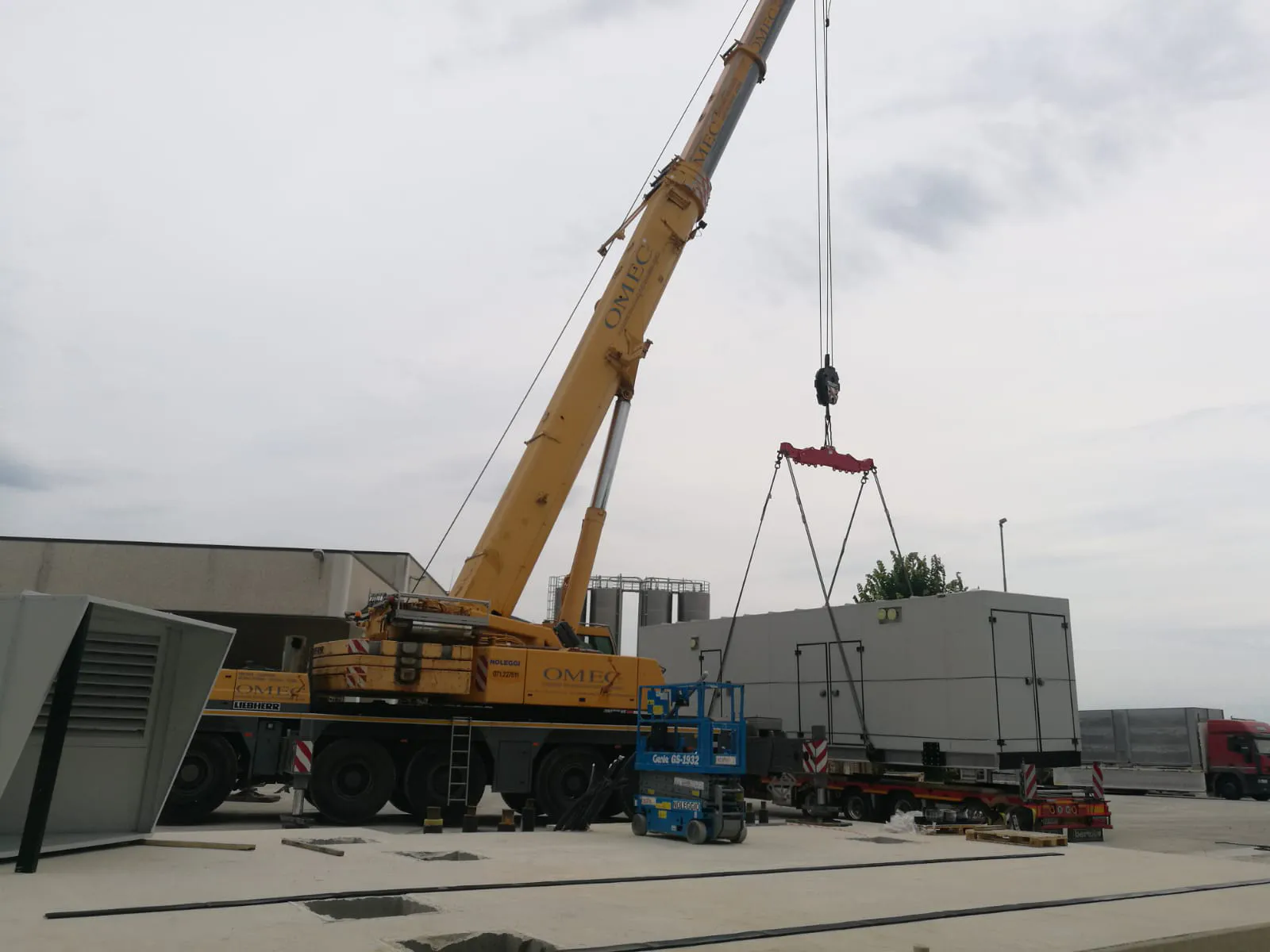

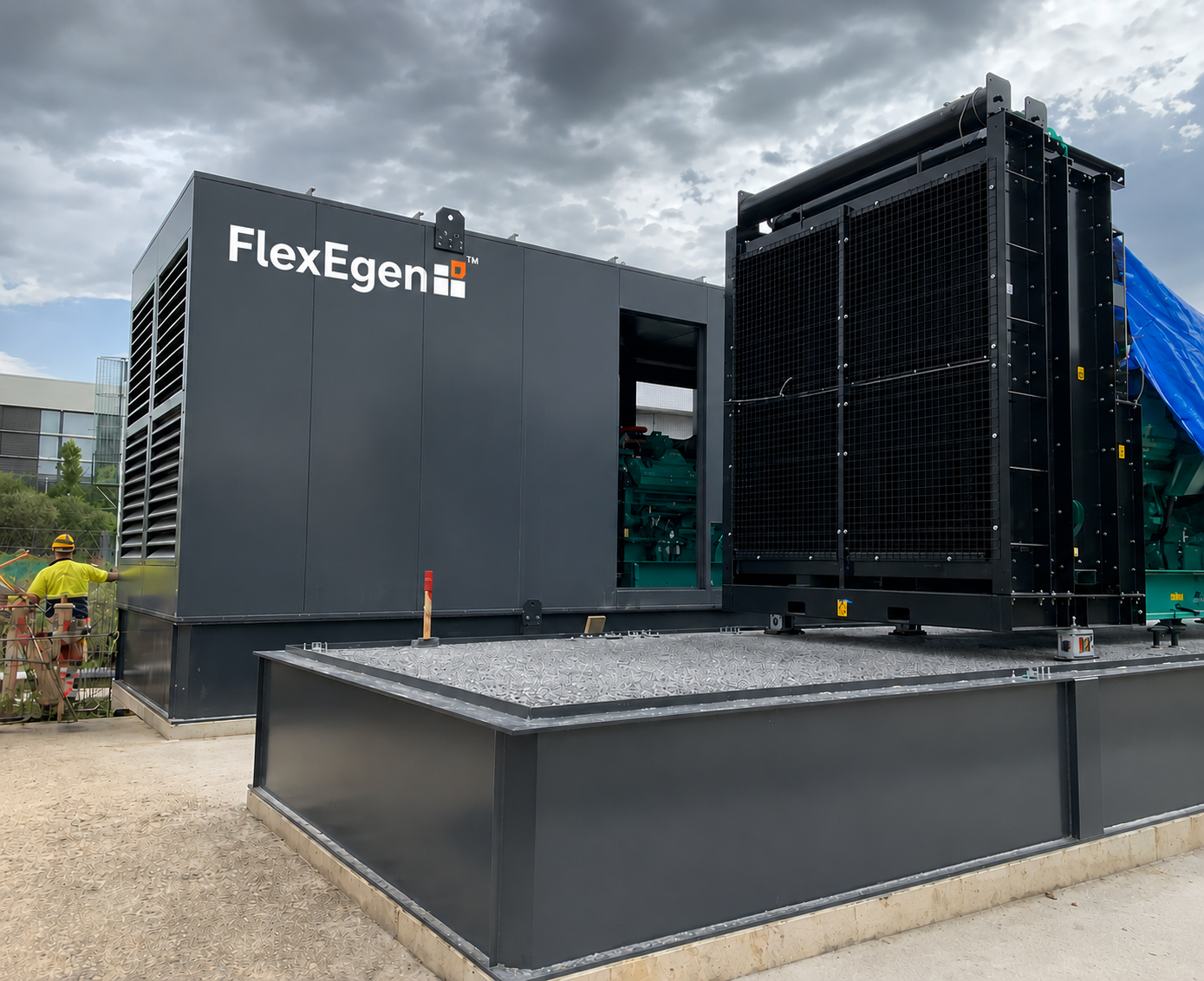

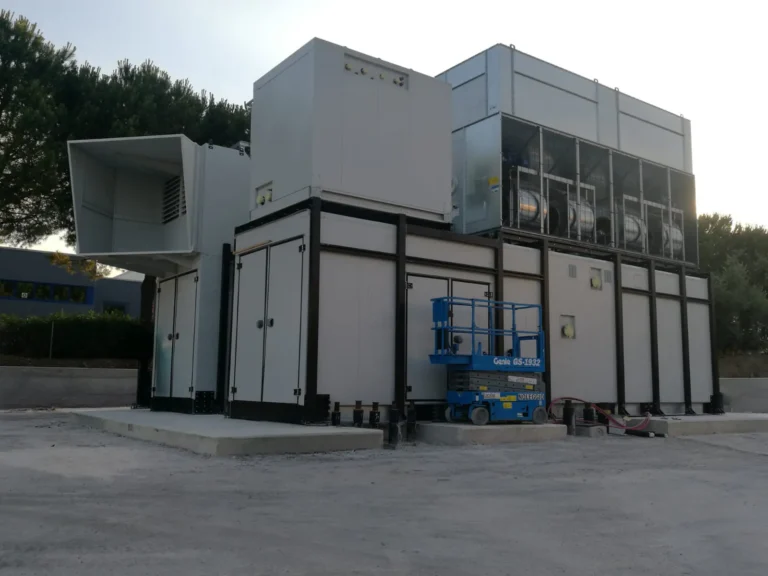

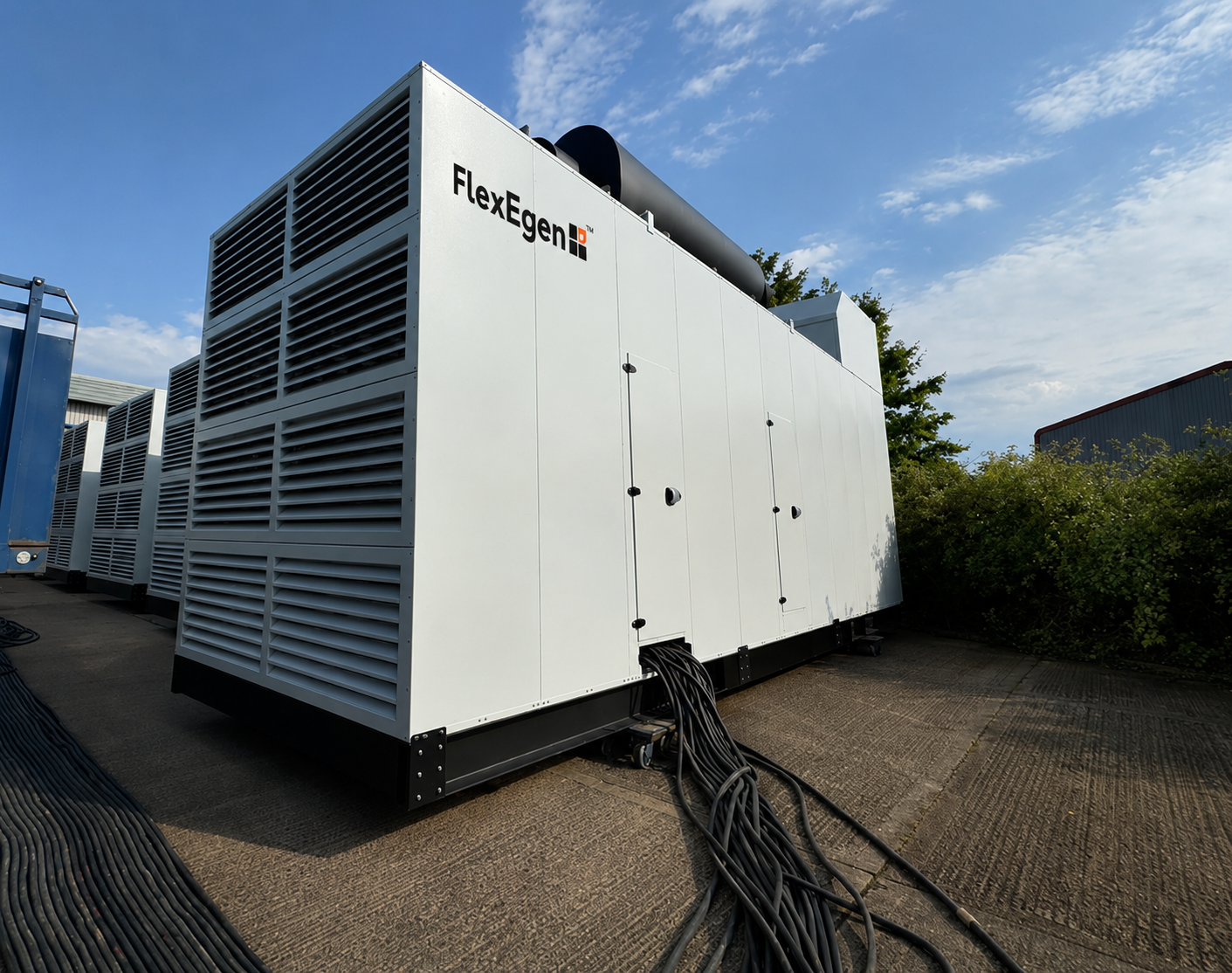

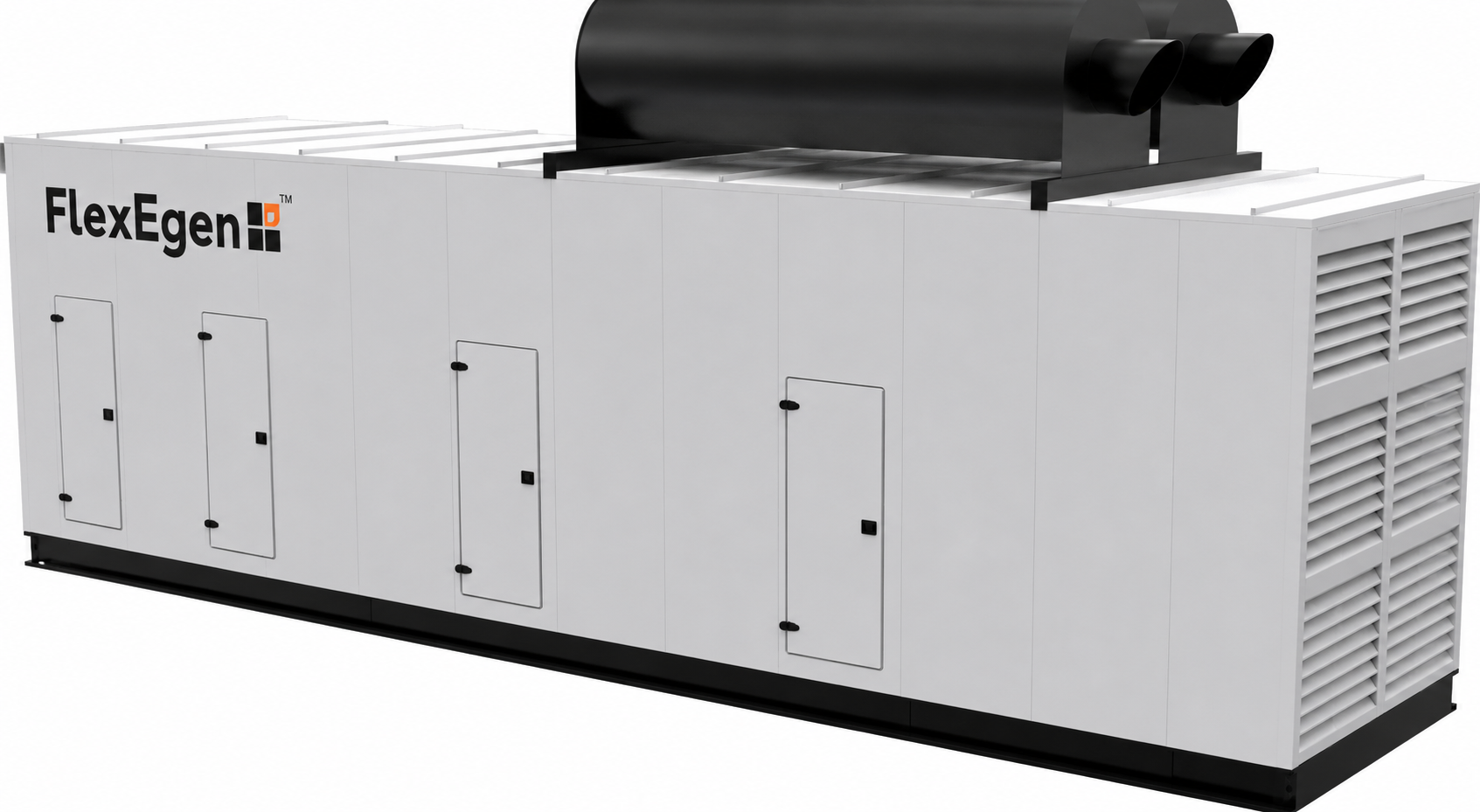

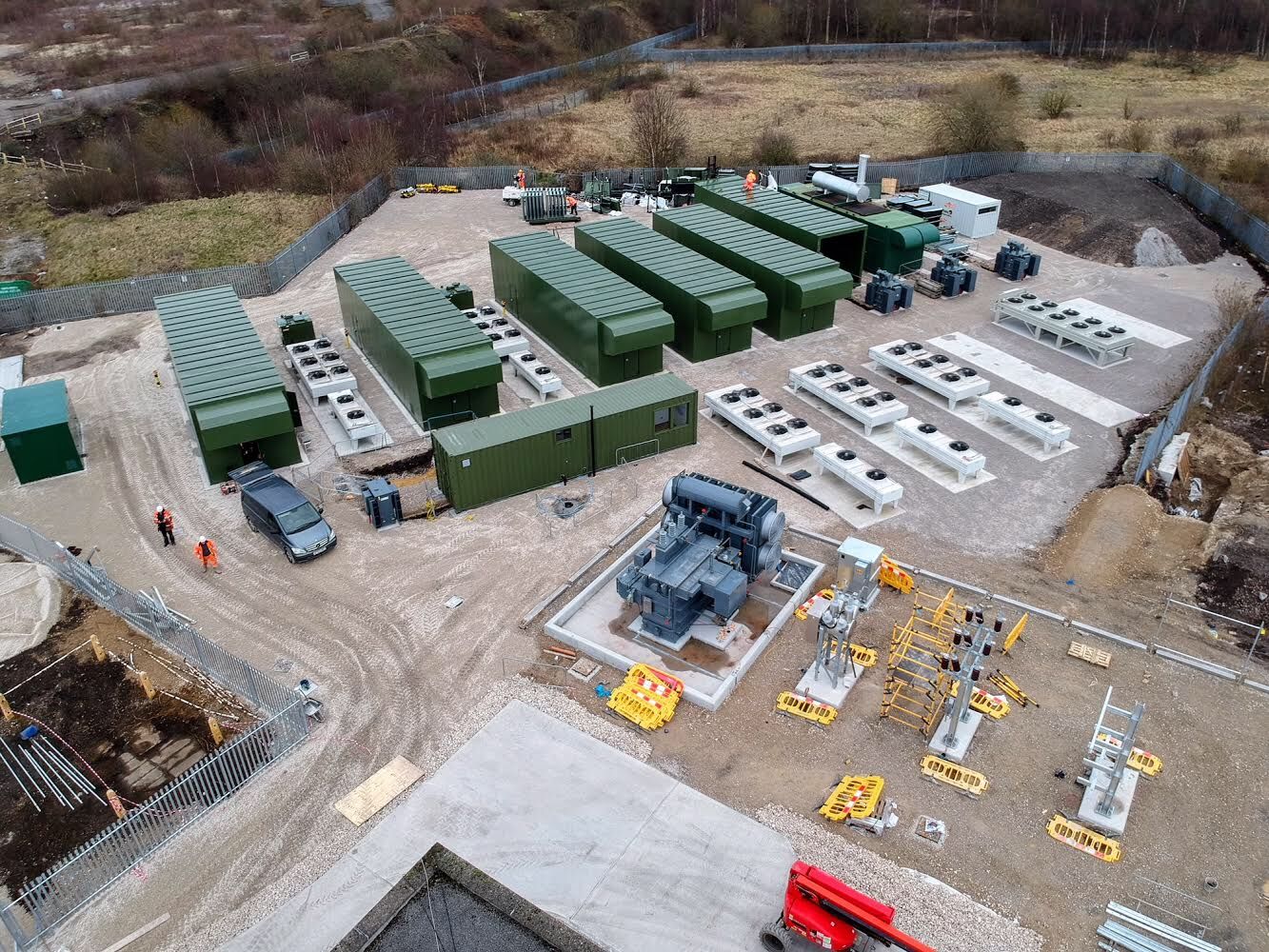

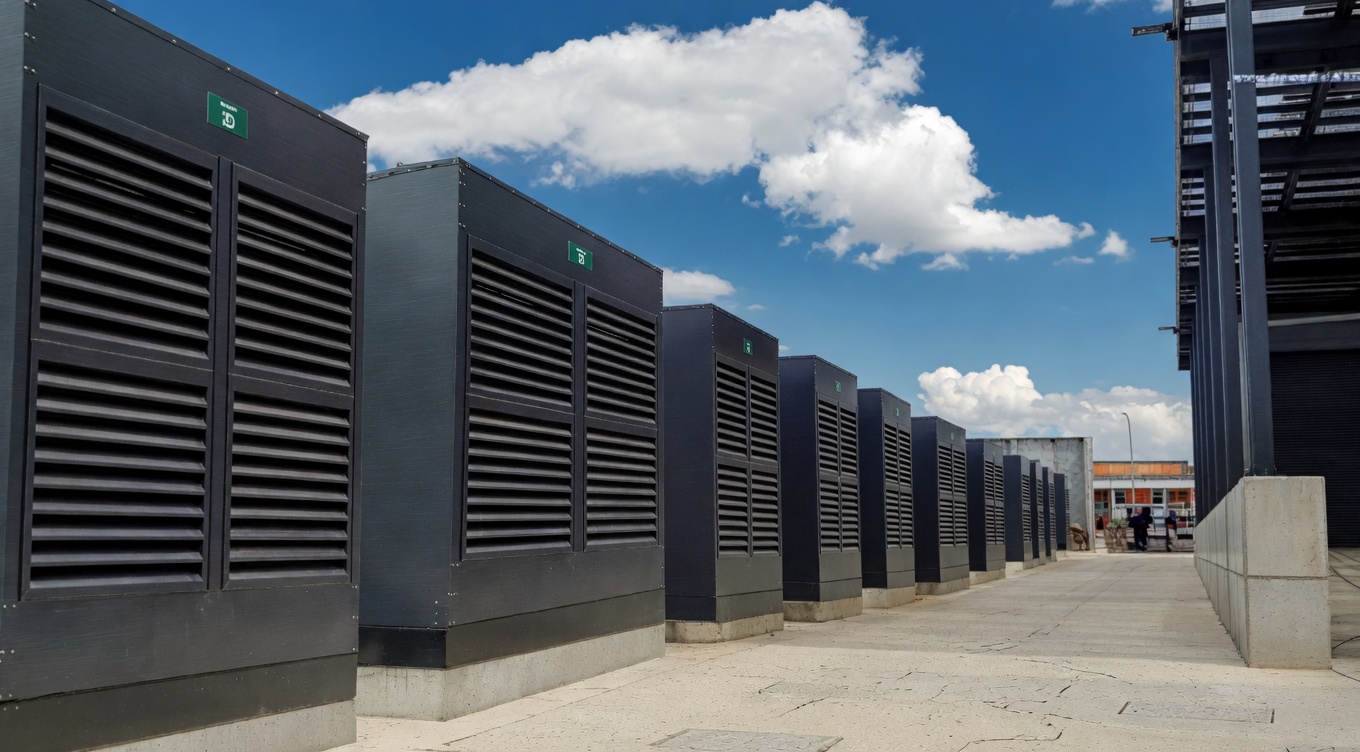

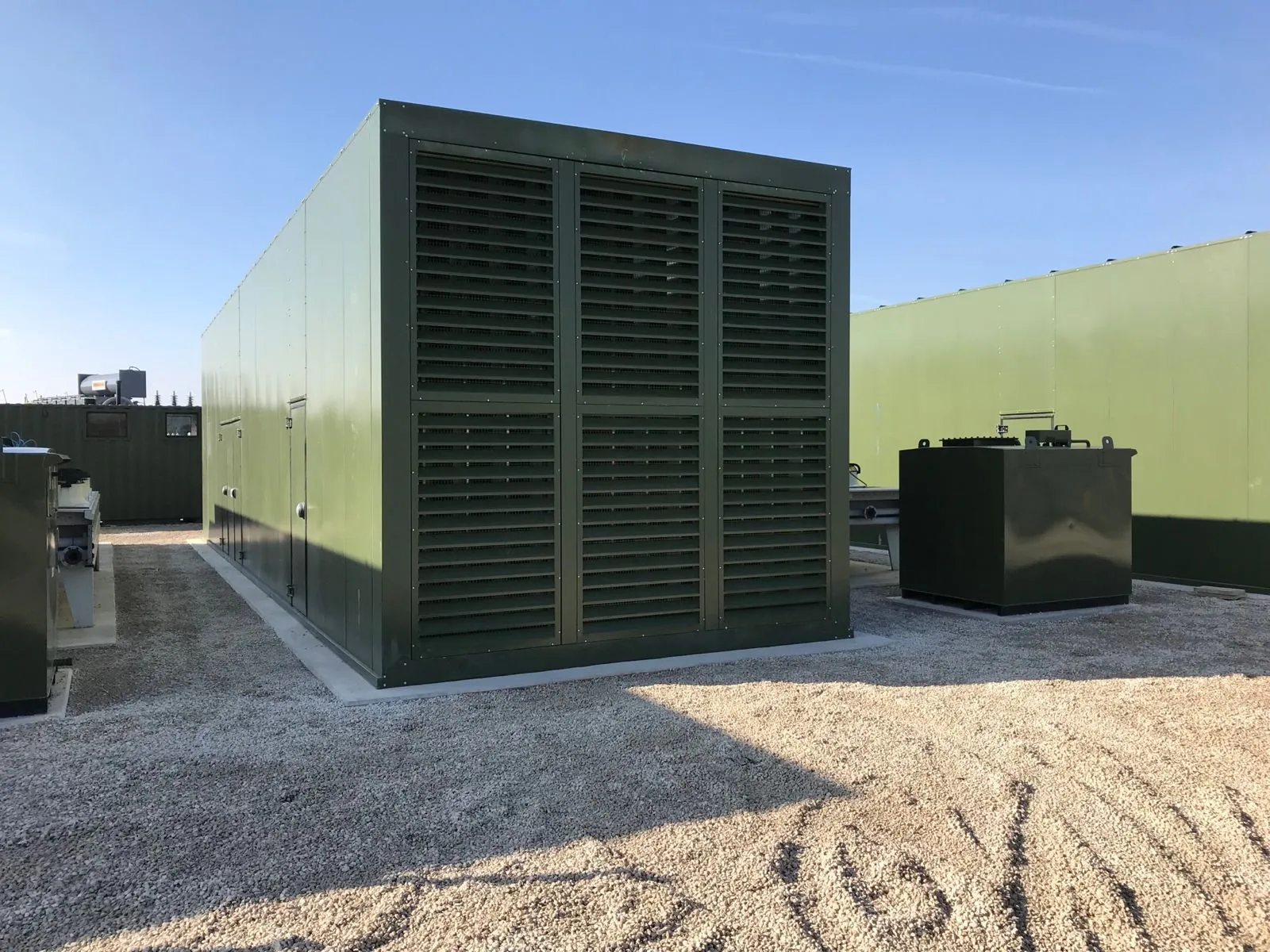

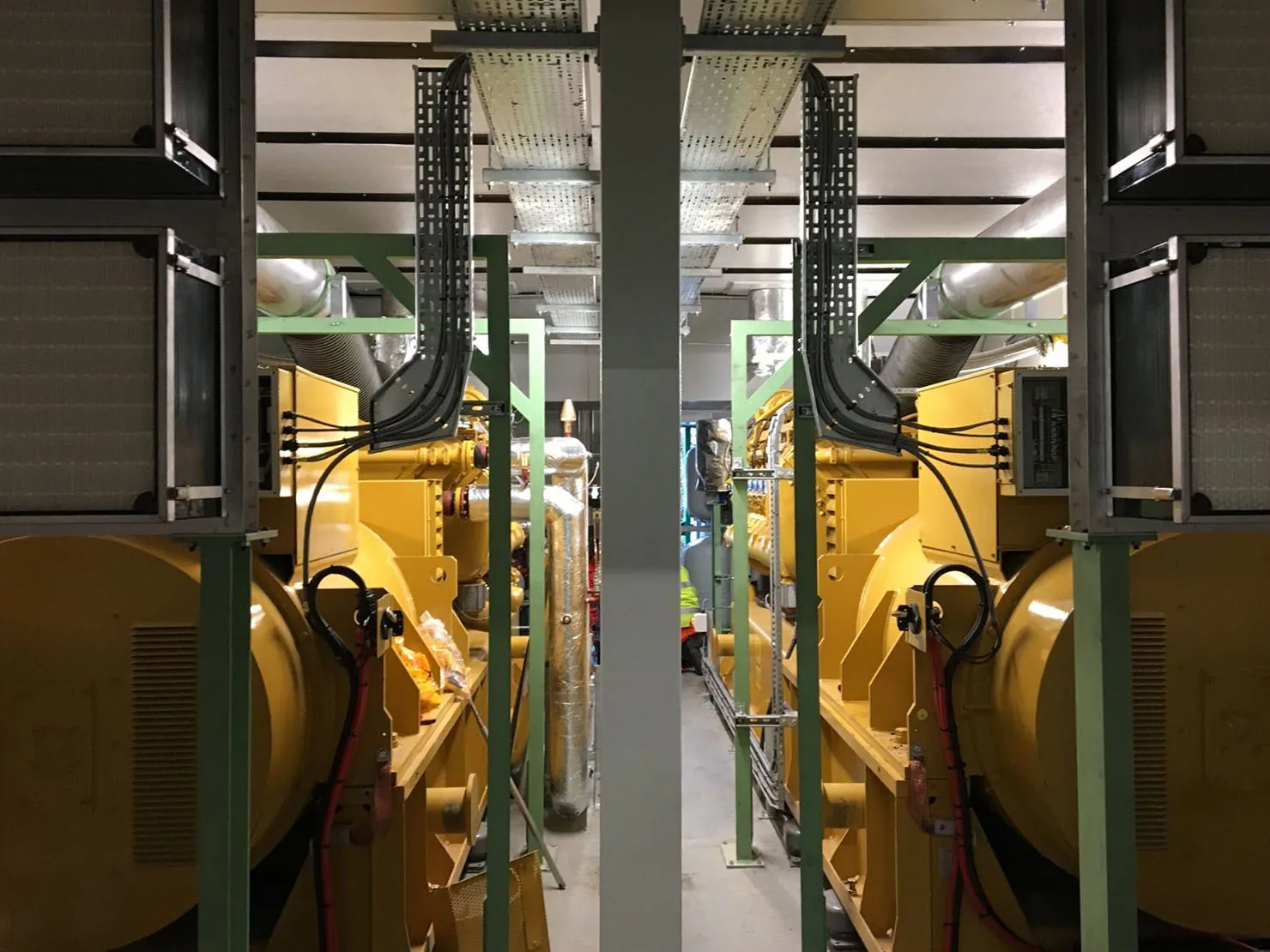

FlexEgen in the field
Specifications
Indicative engineering data
- Acoustic — standard
- 85 dBA @ 7.5 m
- Acoustic — optional
- Down to 60 dBA @ 1 m
- Floor
- Bunded steel floor (UK standard)

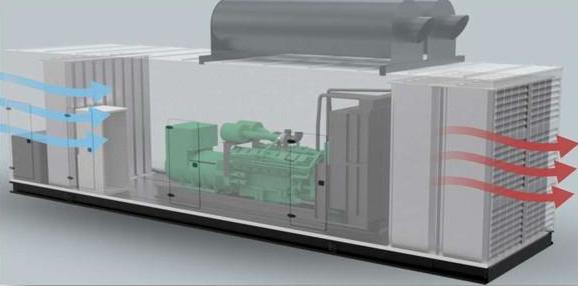

- Ventilation
- Engineered intake & discharge attenuators
- Exhaust
- Sized penetration with insulated transit
- Fuel interface
- Day-tank or bulk-fuel connection points
- Engine compatibility
- Diesel and gas, any specified OEM
- Lead time
- Indicative 10–16 weeks from genset data
Technical Specifications
Detailed engineering parameters
Structural & Envelope
- Frame
- Structural steel base — dropover, tank or skid configuration
- Steel grade
- S235 / S355 galvanized
- Wall / cladding
- Cold-rolled galvanised steel, powder coated
- Insulation core
- Multi-density polyester / mineral wool
- Floor
- Bunded steel floor (UK standard); skid or tank base options
- Corrosion protection
- ISO 12944 C3 standard; C5-M optional for marine / coastal
Acoustic & Ventilation
- Acoustic — standard
- 85 dB(A) @ 7.5 m
- Acoustic — optional
- Down to 60 dB(A) @ 1 m (KS super-silent package)
- Ventilation
- Engineered intake & discharge attenuators sized to combustion + cooling air
- Dampers
- Motorised intake / discharge dampers (optional)
- Weather features
- Sand traps, snow hoods, gravity louvres (optional)
Fire, Fuel & Compliance
- Ambient capability
- Operating up to 55 °C
- Fuel interface
- Day-tank or bulk-fuel; integrated base tanks incl. 20-day rental bases
- Fire detection
- Linear heat / smoke detection (optional)
- Suppression
- Gas suppression (optional)
- Compliance
- Stage V ready; ATEX configuration available
Access & Electrical Interface
- Doors
- Gull-wing doors with gas struts; personnel doors with keyed locks
- Lifting
- Certified lifting lugs (2 or 4 hooks per model)
- External cabinets
- Connection cabinets for cable termination, BMS / SCADA, ATS (optional)
- Load bank
- Integrated or external load bank provision (optional)
Sizing & Logistics
- Footprint
- Sized to genset (≈ 4.8 m – 12 m typical)
- Max dimensions
- Up to 24 m (L) × 4.2 m (W) × 4.2 m (H)
- Reference weight
- ≈ 1.9 t – 13.4 t depending on model
- Transport
- Low-loader or skid mount
- Design life
- 20+ years external
- Lead time
- Indicative 10–16 weeks from genset data
Scope
Standard, optional and what we never do
Standard
Included on every FlexEgen unit.
- Acoustic-rated enclosure shell (standard: 85 dBA @ 7.5m)
- Weatherproof cladding and structural base frame
- Ventilation louvres sized for combustion and cooling air (with airflow calculations)
- Exhaust system penetration / interface point
- Fuel line interface point
- Access doors for maintenance and servicing
- Roof bracket for muffler / silencer mounting
- Bunded floor (standard on all UK projects)
- Thermal insulation and corrosion protection
- Documentation package and lifting / transportation provisions
Optional extras
Specified per project, costed as add-ons.
- Enhanced acoustic package — down to 60 dBA @ 1m
- Electrical interface package — external cabinet(s) for cable connection, load bank, BMS/SCADA, ATS
- Enhanced fuel package — internal bulk tank, fuel level monitoring, bund leak monitoring
- Internal infrastructure, electrical building services, fire/safety, and security packages
Exclusions
Out of scope — owned by other trades.
- Power cabling termination — NEVER our scope
- The generator set itself
- Fuel storage beyond the interface point
- Exhaust silencer / piping beyond the penetration
- Control or ATS panel (unless separately specified)
WE NEVER TERMINATE POWER CABLING — THAT STAYS WITH THE ELECTRICAL CONTRACTOR / INTEGRATOR.
